Main Amplifier:

AC coupled input
Input AC power 110/240 50/60 Hz
Bandwidth: 10 KHz
Gain: 50 or 500

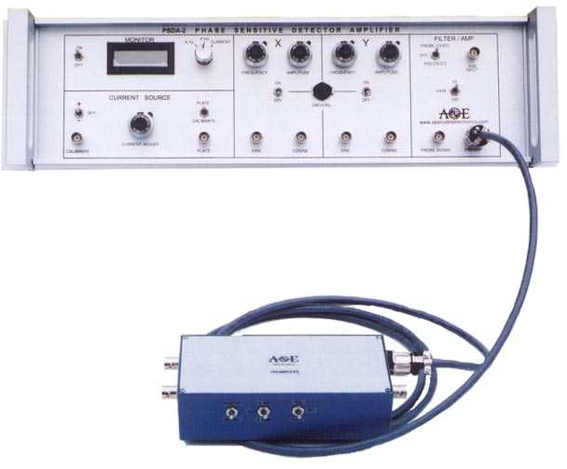

Features:

• Dual sine/cosine oscillators
• Frequency range: 100 to 1KHz
• Dual phase sensitive detector amplifiers
• Output Range: +/- 10 VDC
• Current source for calibration and electrode plating
• Circuits for test and calibration
• Preamplifier (Model 100)
• 2D piezoelectric vibrator assembly - 2D ITL

Model 100  Preamplifer:

Differential Input
Gain: x 10 or x 100 (Switch selected)

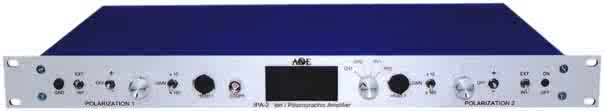

Main Amplifier Features:

• Input Power: 100-240 VAC 50/60 Hz
• Amplifier Gain: x10/x100 standard
• Bandwidth: 100 KHz (10 X Output)                                  10 Hz (100 X Output)
• Front panel display of Nernst potential or electrode current
• Two channels for simultaneous dual electrode measurements
• Internal polarization voltage +/- 3.5 VDC
• External polarization (drive with D/A or signal generator) +/-10 VDC

Ion-Selective Headstage:

       Gain: x10

Polarographic Headstage:

       Gain:  1  mV/pA

Ion Electrode Kit:

2 ISE electrode holders, dri-ref electrode
